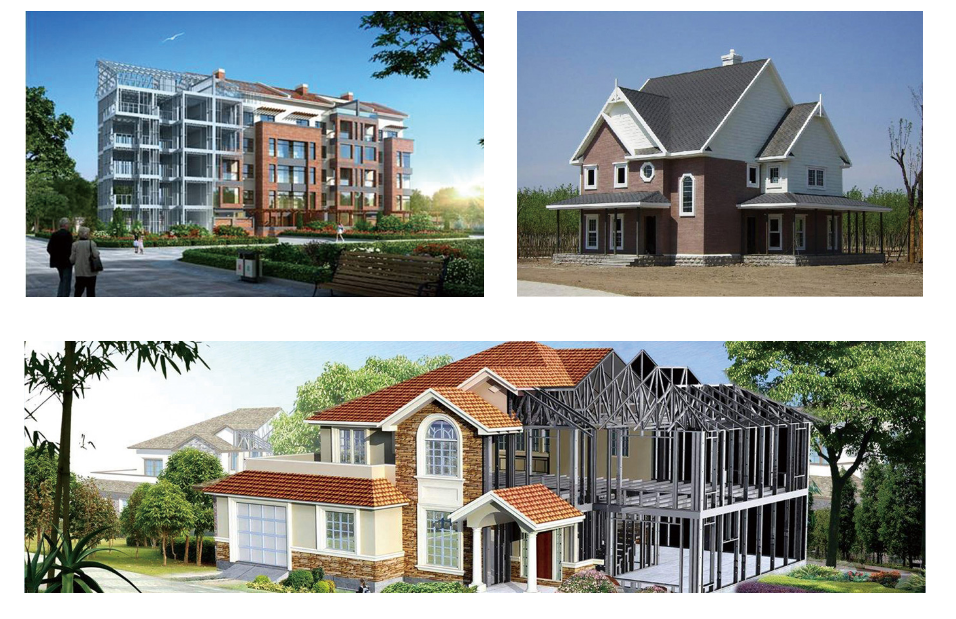

08輕鋼別墅系統（1-3層）





產品介紹

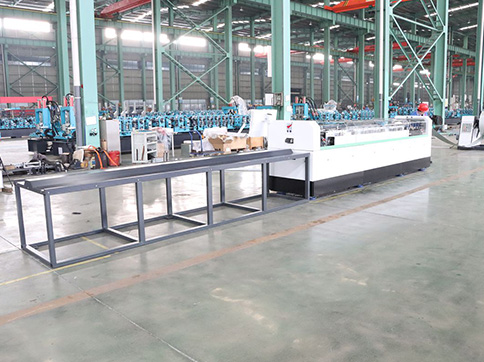

HG輕鋼別墅系統-參數
產品型號Model	選配	HG-10			HG-10T		HG-300
產品規格Specification	*	70mm	89mm	140mm	70mm/89mm	89mm/140mm	89mm-300mm
功能Function	*	單一規格Single specification	單一規格Single specification	單一規格Single specification	雙規格Double specification	雙規格Double specification	規格無極變換Standard polar transformation
打印機Printer	√	雙頭噴墨（進口）Both hole printer	雙頭噴墨（進口）Both hole printer	雙頭噴墨（進口）Both hole printer	雙頭噴墨（進口）Both hole printer	雙頭噴墨（進口）Both hole printer	雙頭噴墨（進口）Both hole printer
板型Profile	*	C	C	C	C	C	C
材料厚度Thickness of raw	*	0.75-1.2mm	0.75-1.3mm	0.75-1.4mm	0.75-1.5mm	0.75-1.6mm	0.75-1.7mm
操作系統Operation system	*	HG-R1	HG-R1	HG-R1	HG-R3	HG-R3	HG-R5
機器控制Machine control	*	華恒數控NC系統CNC system NC	華恒數控NC系統CNC system NC	華恒數控NC系統CNC system NC	華恒數控NC系統CNC system NC	華恒數控NC系統CNC system NC	華恒數控NC系統CNC system NC
設計軟件Design software	√	Vertex	Vertex	Vertex	Vertex	Vertex	Vertex
加工速度Forming speed	*	30m/min高速不沖剪high speed without punching&cutting	31m/min高速不沖剪high speed without punching&cutting	32m/min高速不沖剪high speed without punching&cutting	33m/min高速不沖剪high speed without punching&cutting	34m/min高速不沖剪high speed without punching&cutting	35m/min高速不沖剪high speed without punching&cutting
電機功率Motor power	*	5.5KW	5.5KW	5.5KW	7.5KW	11KW	22KW
液壓動力Hydraulic motor power	*	7.5KW	7.5KW	7.5KW	7.5KW	7.5KW	11KW
液壓冷卻Hydraulic cooling	*	風冷（選用空調冷卻）Air conditioning cooling	風冷（選用空調冷卻）Air conditioning cooling	風冷（選用空調冷卻）Air conditioning cooling	風冷（選用空調冷卻）Air conditioning cooling	風冷（選用空調冷卻）Air conditioning cooling	風冷（選用空調冷卻）Air conditioning cooling
Hydraulic cooling	*	cooling system	cooling system	cooling system	cooling system	cooling system	cooling system
液壓蓄能器Hydraulic accumulator	*	√	√	√	√	√	√
剪切Shearing	*	成型剪Post cutte	成型剪Post cutte	成型剪Post cutte	成型剪Post cutte	成型剪Post cutte	無極成型剪Stepless post cutte
三聯孔Triple hole	*	√	√	√	√	√	√
管線孔Service hole	*	√	√	√	√	√	√
聯接沉孔Dimple	*	√	√	√	√	√	√
縮口Web swage	*	√	√	√	√	√	√
小邊讓位槽Lip cut	*	√	√	√	√	√	√
頭尾切角Truss notch	*	√	√	√	√	√	√
對穿槽Wed notch	*	√	√	√	√	√	√
聯接雙釘孔Comer hole	√	/	/	/	/	/	/
其他孔Other hole	√	/	/	/	/	/	/
電壓Electrical conditions	*	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
液壓箱Hydraulic station	*	230L	230L	230L	230L	230L	230L
外形尺寸Dimensions	*	5.25m1.1m1.6m	5.25m1.1m1.6m	5.25m1.1m1.6m	5.25m1.6m1.6m	5.25m1.6m1.6m	9.8m2.0m1.8m
重量Weight	*	3.5T	3.5T	3.5T	4.5T	4.5T	8.5T
開卷機Uncoiler	√	3T	3T	3T	3T	3T	3T
托料臺Materiel platform	√	3M	3M	3M	3M	3M	3M
